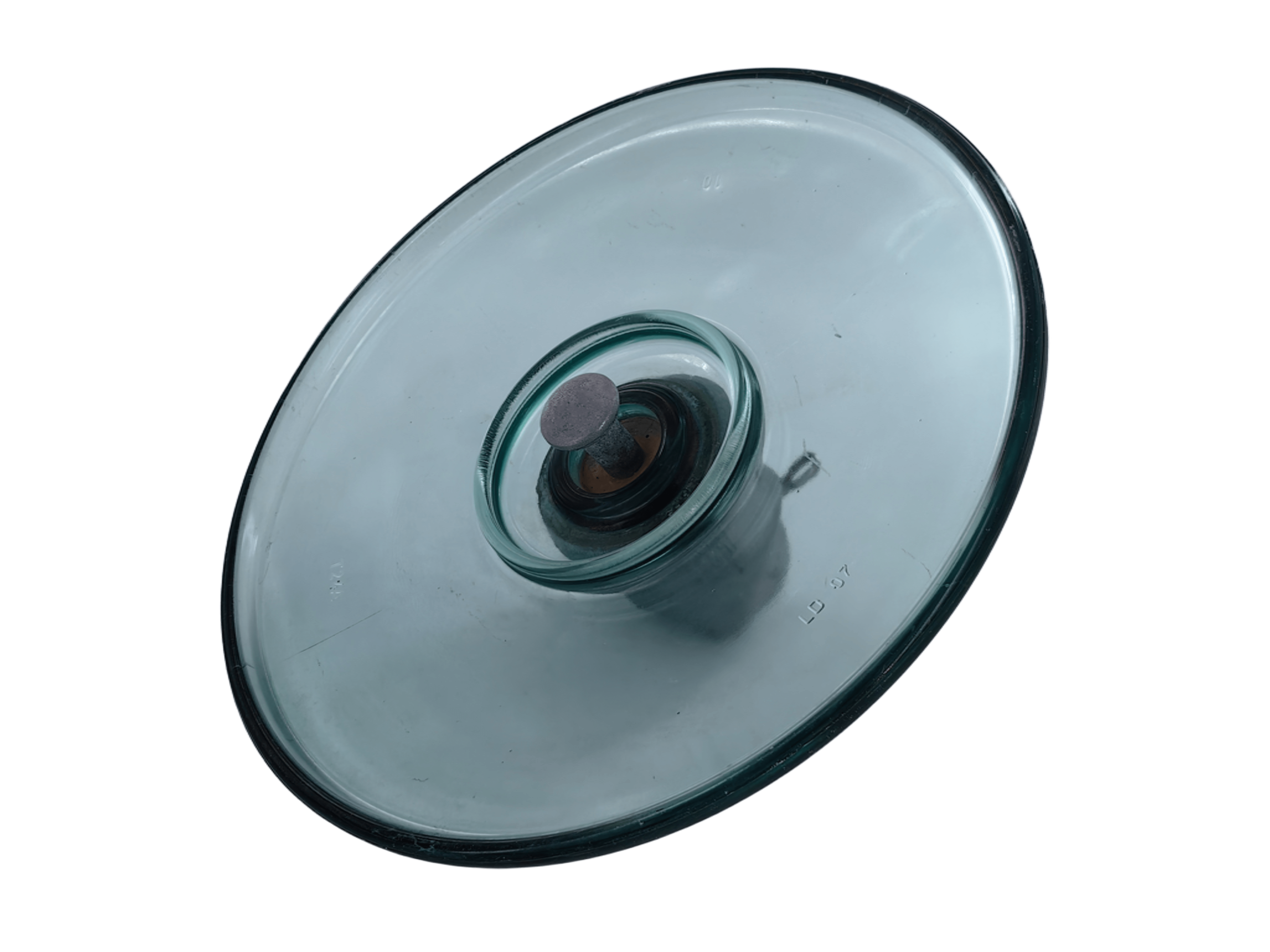

210kN Glass Suspension Insulator U210BP170M for Outdoors

Advanced Glass Insulators for Overhead Transmission Lines

Glass insulators play a crucial role in providing insulation and structural support for overhead transmission lines. Jiangxi Huayao Electric Co., Ltd., located in Shangbu Town Industrial Park, Luxi County, Pingxiang City, Jiangxi Province, China, stands at the forefront of this industry, offering high-quality glass insulators with cutting-edge production technology.

State-of-the-Art Production Capabilities

Huayao's production line is equipped with world-class machinery sourced from Germany, Italy, and other leading countries. This enables the company to produce over six million AC and DC glass insulators annually. With a registered capital of 120 million yuan and a sprawling facility covering 47 acres, Huayao prides itself on its advanced production techniques and rigorous quality testing.

Structural Composition and Design

• Iron Cap
• Tempered Glass Parts
• Steel Feet
• Cement Adhesive

The innovative cylindrical head structure of Huayao's glass insulators ensures a compact size, lightweight, high strength, and an extended creepage distance. These features lead to significant savings in metal materials and reduced line costs.

Comprehensive Range of Glass Insulators

• Standard Type (40-550kN)
• Pollution-Resistant Type (70-400kN)
• Multi-Umbrella Type (120-330kN)
• Aerodynamic Type (120-300kN)
• Ground Wire Type

Aerodynamic Insulator Advantages

The aerodynamic insulator design is engineered to minimize filth deposition, making it especially effective in industrial pollution areas and coastal environments with salt spray. Its unique skirt structure aids in naturally washing away contaminants with wind and rain, maintaining optimal insulation performance.

Main Technical Parameters

• Type: U210BP/170M
• Diameter: 420mm
• Spacing: 170mm
• Creepage Distance: 380mm
• Mechanical Failing Load: 210kN
• Power Frequency Withstand Voltage (Dry): 60kV
• Power Frequency Withstand Voltage (Wet): 50kV
• Lightning Impulse Withstand Voltage: 95kV

Commitment to Quality and Compliance

Huayao adheres to international standards including GB, IEC, ANSI, BS, DIN, and AS. Routine tests such as dimension verification, displacement verification, locking system tests, and galvanized layer tests ensure each product meets the highest quality standards.

Reliable Supply and Logistics

With a daily output of 10,000 pieces and a supply capacity of 50,000 pieces, Huayao ensures timely deliveries through major ports like Ningbo and Shanghai. Offering flexible payment terms such as TT, L/C, and FCA, Huayao is committed to providing exceptional customer service worldwide.

For high-quality glass insulators that comply with global standards and offer exceptional performance in various environments, choose Jiangxi Huayao Electric Co., Ltd.
