240kN Glass Suspension Insulator U240B for Power Lines

About Jiangxi Huayao Electric Co., Ltd.

Located in Shangbu Town Industrial Park, Luxi County, Pingxiang City, Jiangxi Province, China, Jiangxi Huayao Electric Co., Ltd. is a premier manufacturer of glass insulators in China. With a registered capital of 120 million yuan and an extensive production facility spanning 47 acres, the company boasts a construction area of 17,200 square meters and employs over 150 skilled professionals.

Structural Composition of Glass Insulators

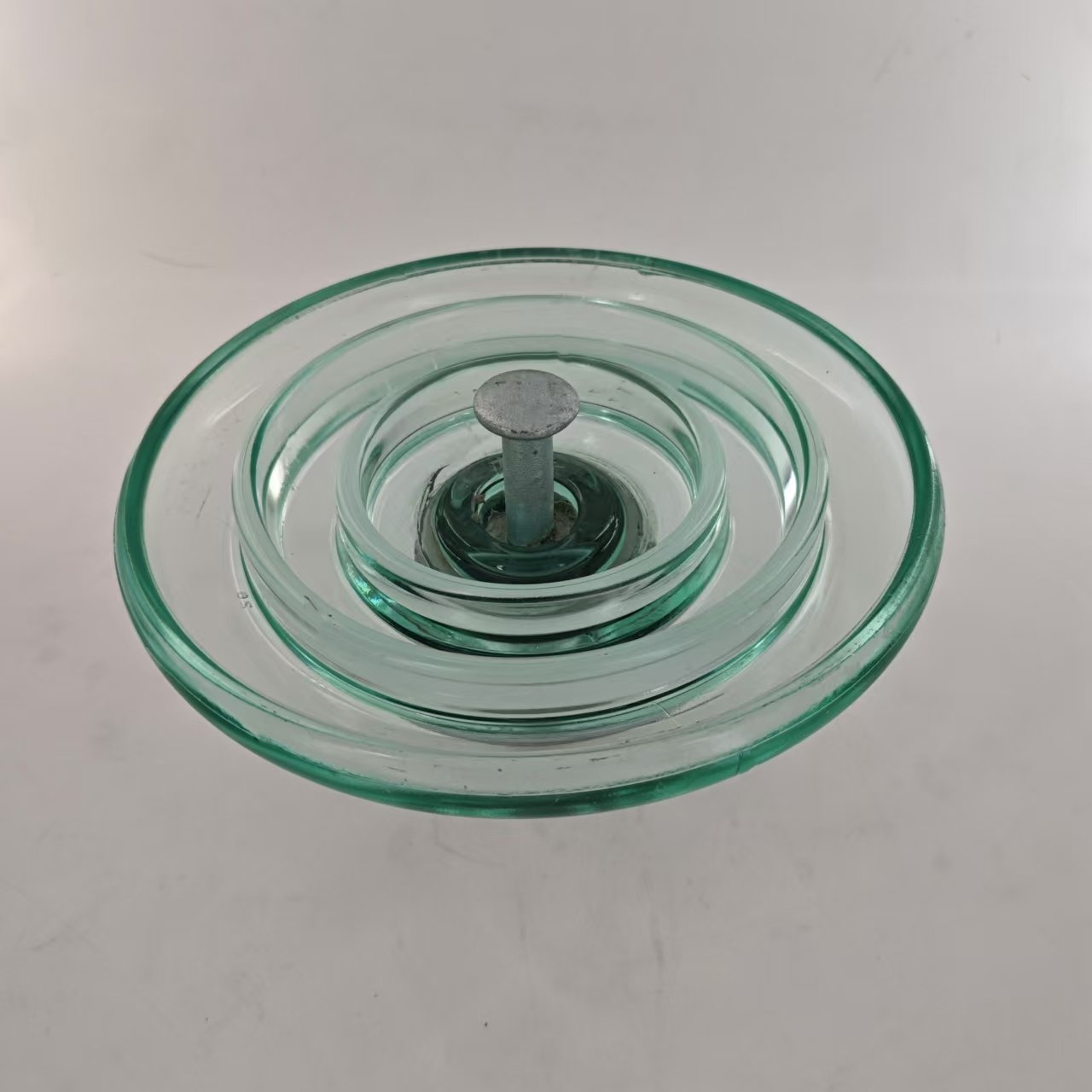

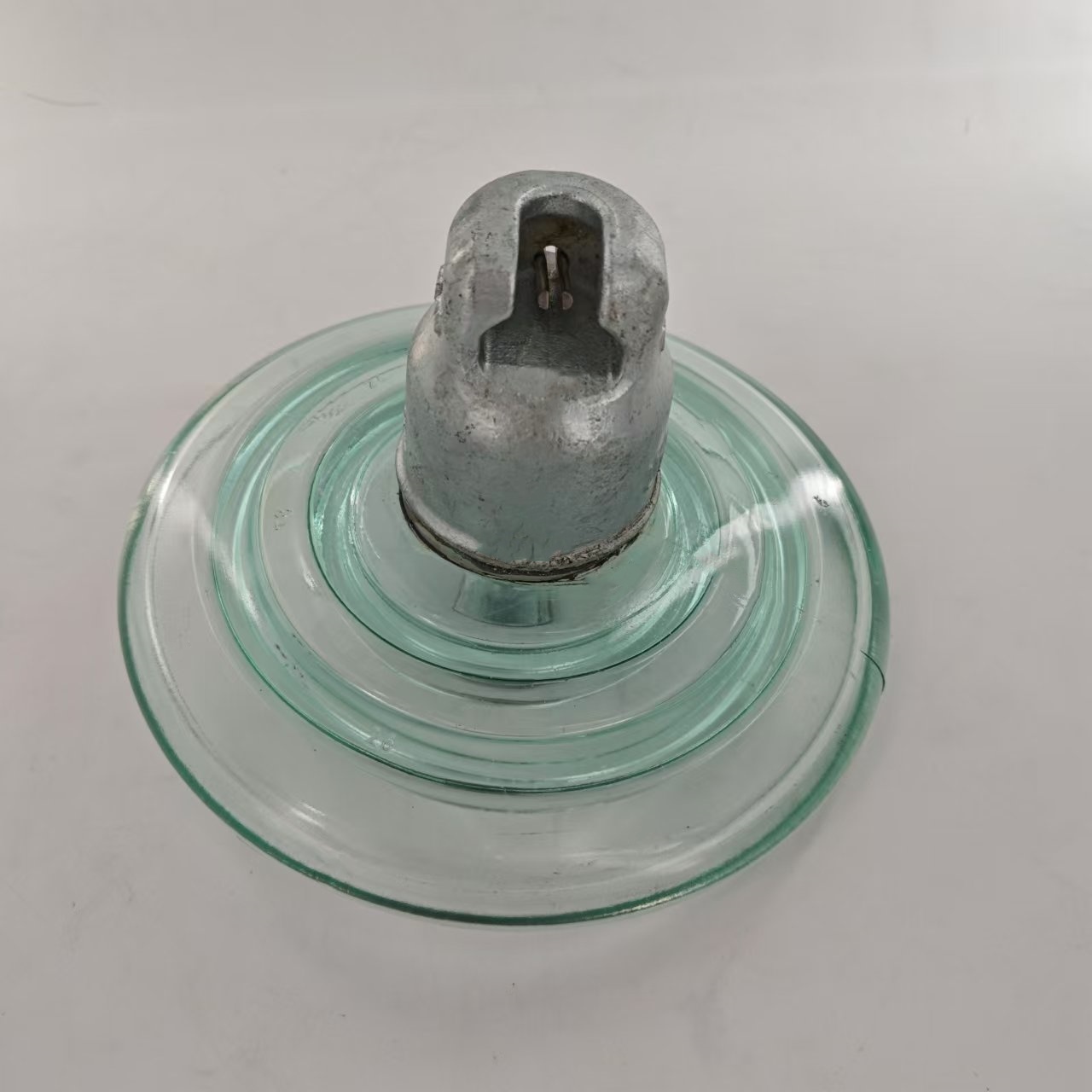

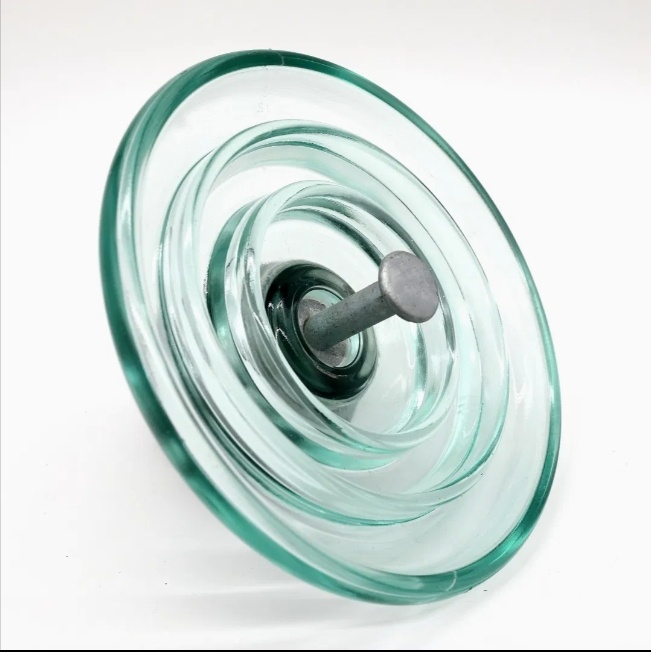

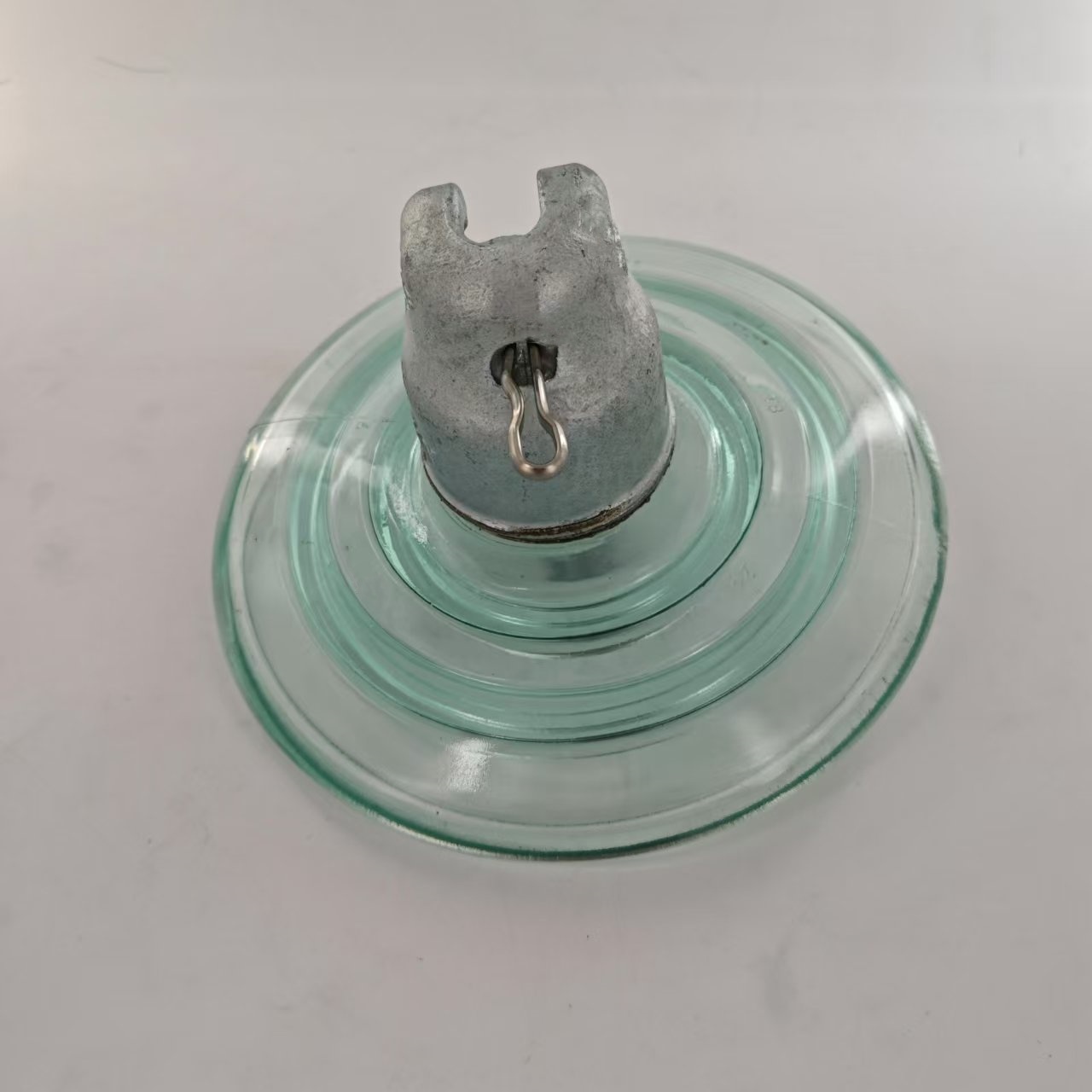

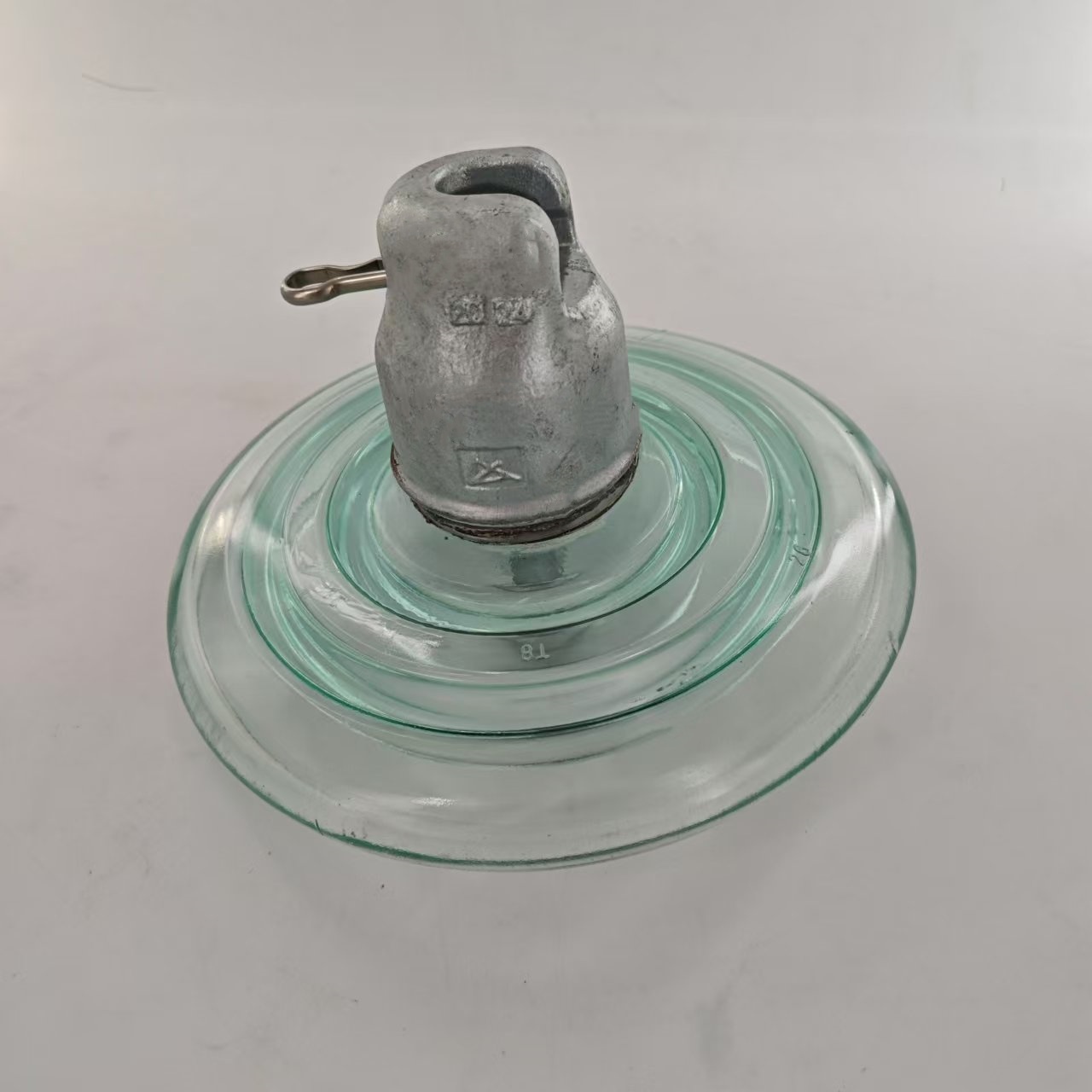

Our glass insulators are meticulously crafted with an iron cap, tempered glass components, and steel feet, all seamlessly integrated using cement adhesive. They feature the cutting-edge cylindrical head structure, known for its compact size, lightweight, high strength, and extensive creepage distance. This innovative design optimizes the use of metal materials and reduces line costs, making them an excellent choice for modern power transmission needs.

Types of Glass Insulators

• Standard Type: Ranges from 40-550kN
• Pollution Resistant Type: 70-400kN
• Multi-Umbrella Type: 120-330kN
• Aerodynamic Type: 120-300kN
• Ground Wire Type
• Contact Network for Electrified Railways

Technical Specifications

The U240BL/170 model is a highlight in our range, featuring a diameter of 280mm, spacing of 170mm, and a creepage distance of 400mm. It’s engineered to withstand mechanical failing loads of 240kN, with tension proof values at 120kN. The electrical values are equally robust, standing at 75kV for dry power-frequency withstand voltage and 45kV for wet conditions.

Why Choose Glass Insulators?

Glass insulators have gained popularity owing to their superior performance, ease of inspection, and alignment with market demand and policy support. They offer:

• High Mechanical Strength
• Compact and Lightweight Design
• Stable Electrical Performance
• Cost-Effective Maintenance

Production and Quality Assurance

To meet growing market demands, Jiangxi Huayao Electric Co., Ltd. has established a state-of-the-art production line for ultra-high voltage tempered glass insulators. By integrating world-class production and testing equipment from Germany, Italy, and other countries, we have enhanced our capacity to produce over 6 million pieces annually.

Contact and Order Details

For inquiries or orders, our minimum order quantity is 10 pieces, priced between 18.0-18.9 USD each. Our products are packaged for export, ensuring safe delivery via Ningbo or Shanghai ports. We offer flexible payment terms including TT, L/C, and FCA.
