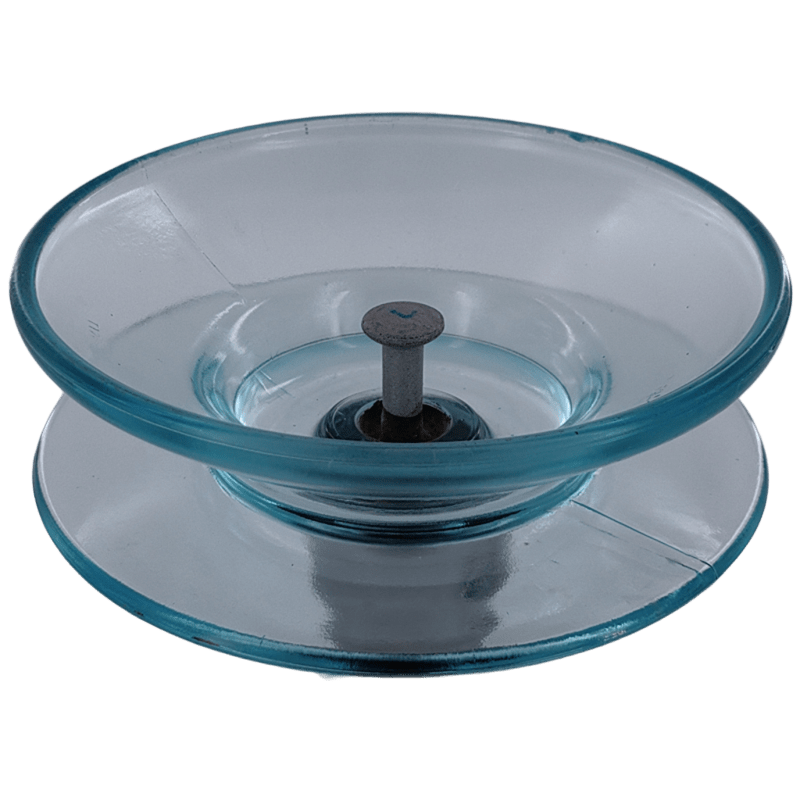

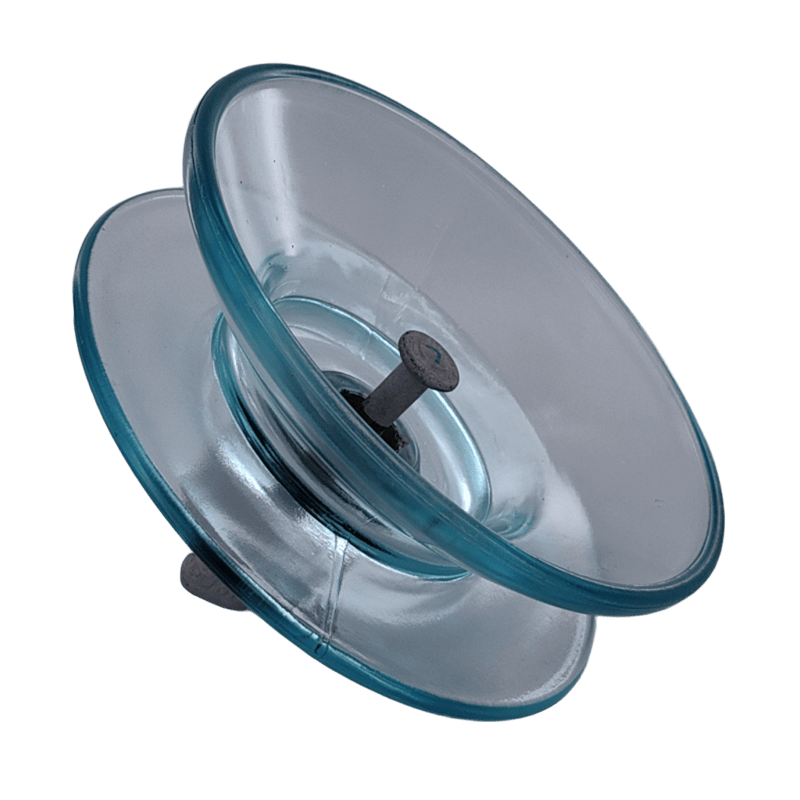

33KV 160KN Double-Umbrella Glass Insulator UG160B170/450

Product Overview

The 160kN double-umbrella disc suspension glass insulator UG160B170/450 and the 120kN version, UG120B/146/450D, are highly esteemed in both the Chinese and international markets, including Vietnam, Iran, and Algeria. These insulators are essential components in overhead transmission lines, providing crucial insulation and support for wires.

Structural Composition

Glass insulators consist of iron caps, tempered glass pieces, and steel feet, all bonded together with cement adhesive. They are available in various types, including standard, pollution-resistant, DC, spherical, aerodynamic, ground wire, and contact network types for electrified railways.

Key Features of Double-Umbrella Disc Suspension Glass Insulators

• Anti-Pollution Performance: The double umbrella structure ensures more uniform pollution distribution over the insulator's surface, reducing pollution flashover accidents in heavily polluted areas.
• High Mechanical Strength: These insulators can withstand vertical and horizontal loads, as well as additional loads from severe weather conditions like strong winds and snow.
• Longevity: With excellent pollution resistance and mechanical strength, these insulators offer a long service life, minimizing replacement frequency and maintenance costs.

Main Technical Parameters

• Type Diameter D (mm)
• Spacing H (mm)
• Creepage Distance L (mm)
• Size of Coupling (mm)
• Mechanical Failing Load (kN)
• Mechanical Routine Test (kN)
• Power Frequency Withstand Voltage DRY (kV)
• Power Frequency Withstand Voltage WET (kV)
• Lightning Impulse Withstand Voltage (kV)
• Min Power Frequency Puncture Voltage (kV)
• Net Weight per Unit (kg)

Why Choose Us

• Hi-Tech Manufacturing: Our state-of-the-art equipment from Germany and Italy ensures high-quality production.
• Factory Direct Price: As a direct manufacturer, we control costs from raw material to finished product, offering competitive prices.
• Large Production Capacity: With the ability to produce over 6 million units annually, we can accommodate short delivery times.
• Strict Quality Control: Adhering to GB, ANSI, BS, DIN, AS, and IEC standards, we guarantee top-notch quality from material selection to final inspection.
• Corporate Culture: Emphasizing quality first, customer first, innovative development, and win-win cooperation, we aim to lead the global glass insulator industry.

Production Process Flow

Our production process at Jiangxi Huayao Electric Co.,Ltd involves mixing raw materials, melting glass, pressing into shape, tempering, cold and shock testing, glue assembly, routine testing, and packaging.

Standards Compliance

We conduct factory tests according to GB/T1001.1-2021, GB/7253-2019, IEC 60383-1:2023, and IEC 60120:2020 standards, ensuring that our insulators meet industry requirements.
