Porcelain Stay & Guy Strain Insulators ANSI 54-2

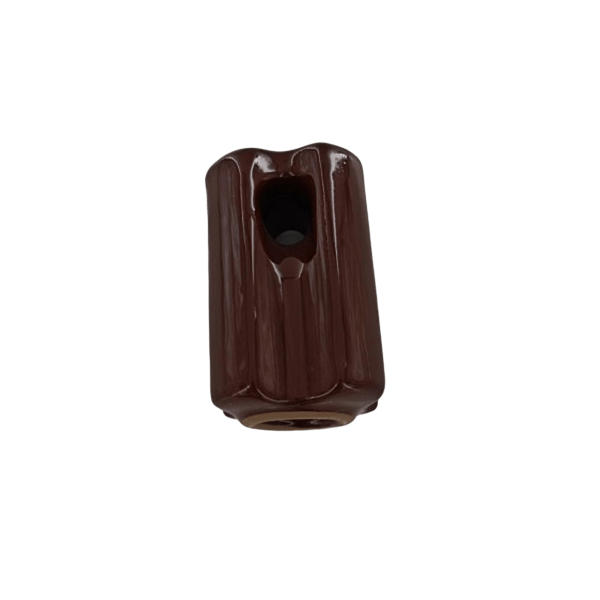

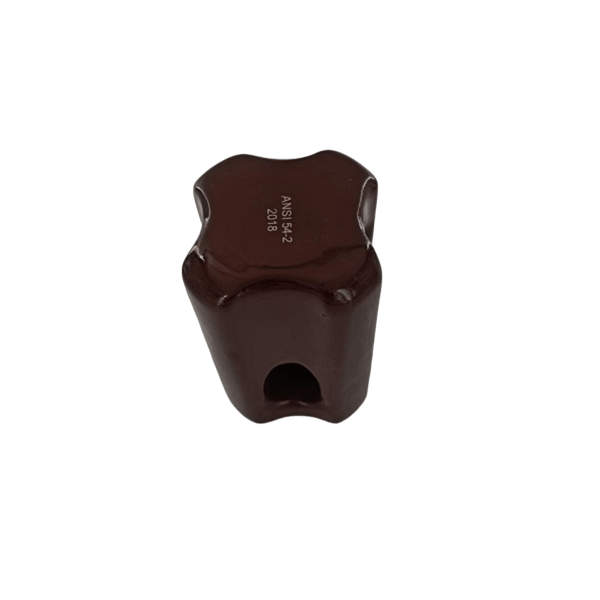

Porcelain Spool Insulator - Model 54-2

Product Name: Medium Voltage Spool Insulator

Brand Name: Huayao

Material: Porcelain

Application: Medium Voltage Transmission Lines

Rated Voltage: 11kV/33kV

Place of Origin: Jiangxi, China

Standard: IEC60383

Color Options: Brown/White

Key Specifications

• Daily Output: 10,000 pieces
• Minimum Order Quantity: 10 pieces
• Packaging Details: Normal export packaging
• Supply Ability: 50,000 pieces
• Delivery Ports: Ningbo, Shanghai
• Payment Terms: TT, L/C, FCA

Product Features

Porcelain Standard Profile Stay Insulators 54-2:

• Dimensions: Spacing (H): 108mm, Creepage Distance: 48mm
• Mechanical Values: Cantilever Strength: 55kN
• Electrical Values: Low Frequency Dry Flashover Voltage: 30kV, Low Frequency Wet Flashover Voltage: 15kV
• Net Weight: 0.65kg

Main Types of Pin Insulator

• ANSI Class: 54-1, 54-2, 54-3, 54-4
• Dimensions Height (mm): 89, 108, 140, 172
• Creepage Distance (mm): 41, 48, 57, 76
• Cantilever Strength (kN): 45, 55, 91, 91
• Low Frequency Dry Flashover Voltage (kV): 25, 30, 35, 40
• Low Frequency Wet Flashover Voltage (kV): 12, 15, 18, 23
• Net Weight (kg): Approximate 0.5, 0.65, 1.2, 1.85

Related Products for Porcelain Insulator

Explore a range of related products for enhanced insulation solutions.

Production Process Flow

The production process of porcelain insulators at Jiangxi Huayao Electric Co., Ltd includes the following steps:

• Mix Raw Material
• Make Blank Shape
• Drying
• Glazing
• Baking in Kiln
• Glue Assembly
• Routine and Other Tests
• Finished Products Packaging

Workshop and Customer Visits

Jiangxi Huayao Electric Co., Ltd offers a state-of-the-art workshop and welcomes customer visits to explore our top-tier manufacturing capabilities.

Contact Us for Your Insulation Needs

Get in touch with us for high-quality porcelain insulators, designed for optimal performance in medium voltage transmission lines.
