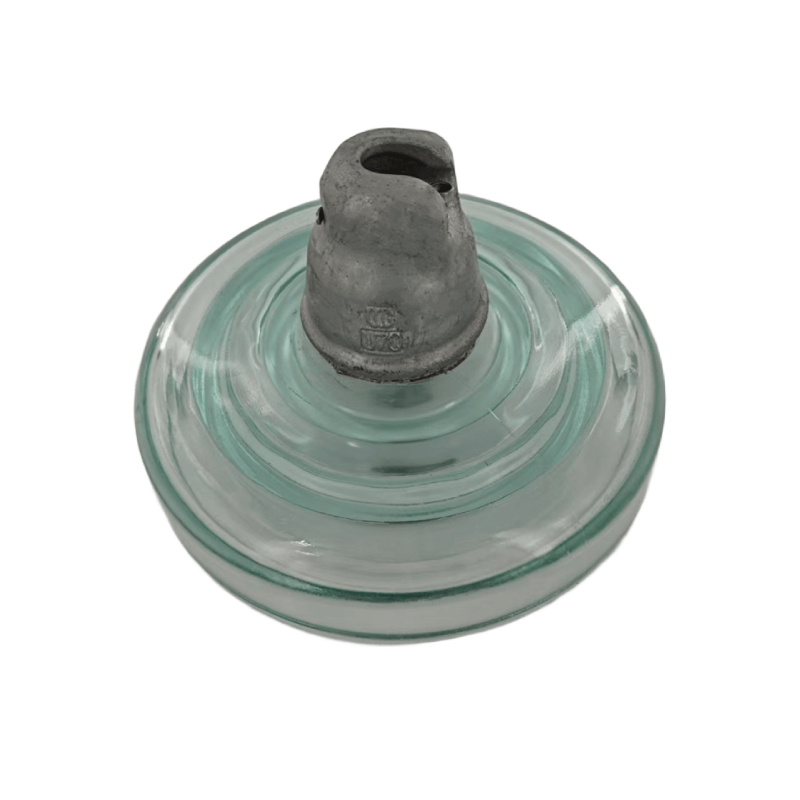

Toughened Glass U100BLP Suspension Insulator

100kN Anti-Fog Disc Suspension Glass Insulator U100BLP

Jiangxi Huayao Electric Co., Ltd., is a leading manufacturer of high voltage disc suspension glass insulators, offering reliable insulation solutions for overhead transmission lines. Our U100BLP model is designed to provide superior insulation and support for wires, utilizing advanced production techniques.

Product Features and Specifications

• Model Number: U100BLP
• Material: Toughened Glass
• Rated Voltage: 33kV
• Brand Name: Huayao
• Place of Origin: Jiangxi, China
• Certification: ISO9001
• Color: Jade Green

Product Details

• Daily Output: 10,000 pieces
• Packaging: 6 pieces per wooden case, secured on a pallet
• Supply Ability: 50,000 pieces per month
• Delivery Port: Ningbo, Shanghai
• Payment Terms: TT, L/C, FCA

Mechanical and Electrical Values

• Diameter (D): 280mm
• Spacing (H): 146mm
• Creepage Distance: 450mm
• Coupling Size: 16mm
• Mechanical Failing Load: 100kN
• Tension Proof: 50kN
• Dry Power-frequency Withstand Voltage: 85kV
• Wet Power-frequency Withstand Voltage: 50kV
• Dry Lightning Impulse Withstand Voltage: 125kV
• Puncture Withstand Voltage: 130kV
• Net Weight: 5.5kg

Production Standards and Quality Testing

Our glass insulators are manufactured in compliance with international standards such as GB/T1001.1-2021 and IEC 60383-1:2023. To ensure premium quality, we conduct rigorous testing, including:

• Verification of Dimensions
• Surface Defects Inspection
• Locking System Test
• Galvanized Layer Thickness Test
• Thermal Shock Test
• Mechanical Failing Load Test

Our dedication to quality assurance ensures that Jiangxi Huayao Electric Co., Ltd. remains a trusted provider of high-performance glass insulators in markets like Vietnam, Iran, and Algeria.

Contact for Inquiries

For more information on our glass insulator products, please contact us. Our team is ready to assist with your high voltage insulation needs.
